THE FLEET

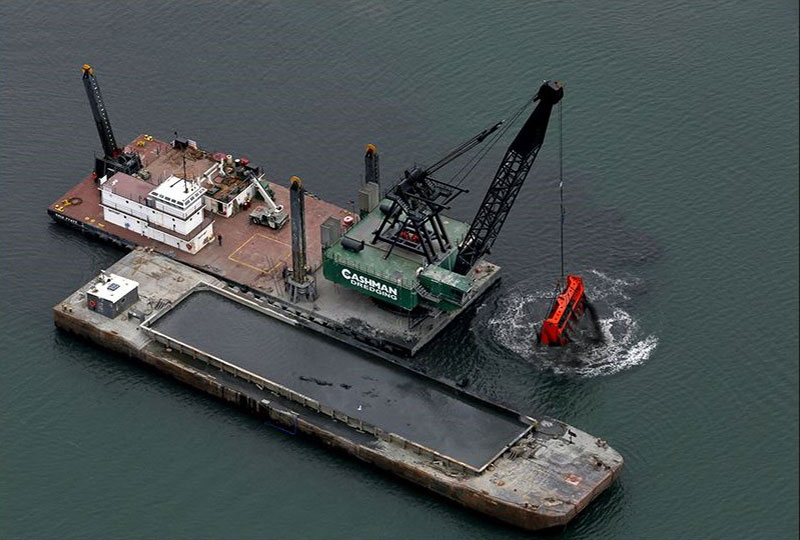

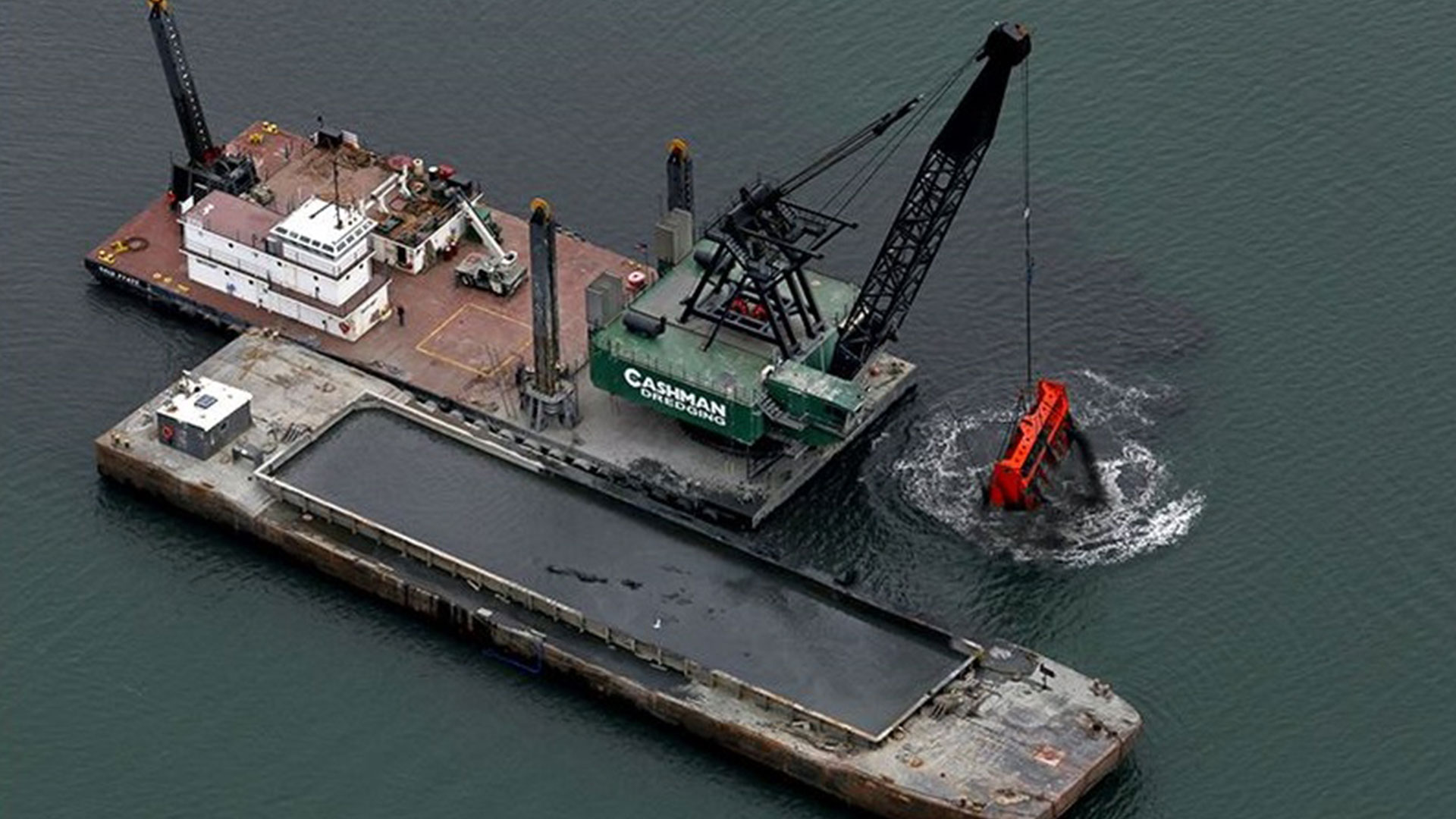

Dale Pyatt

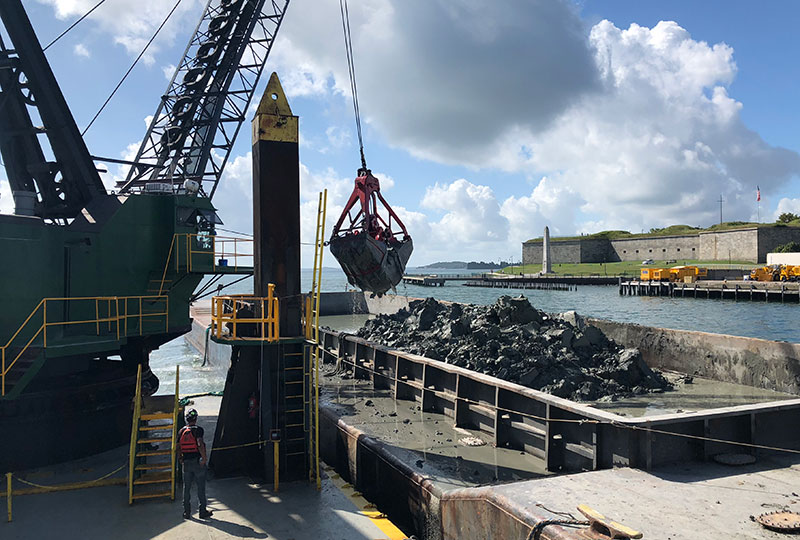

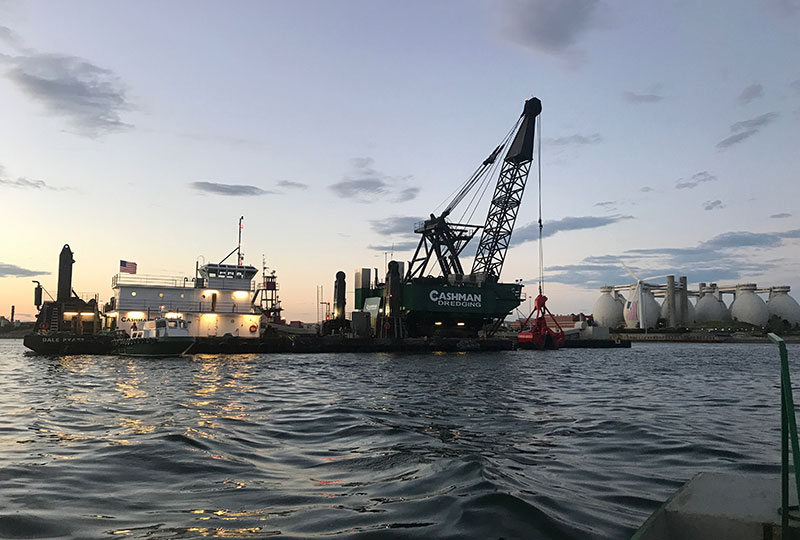

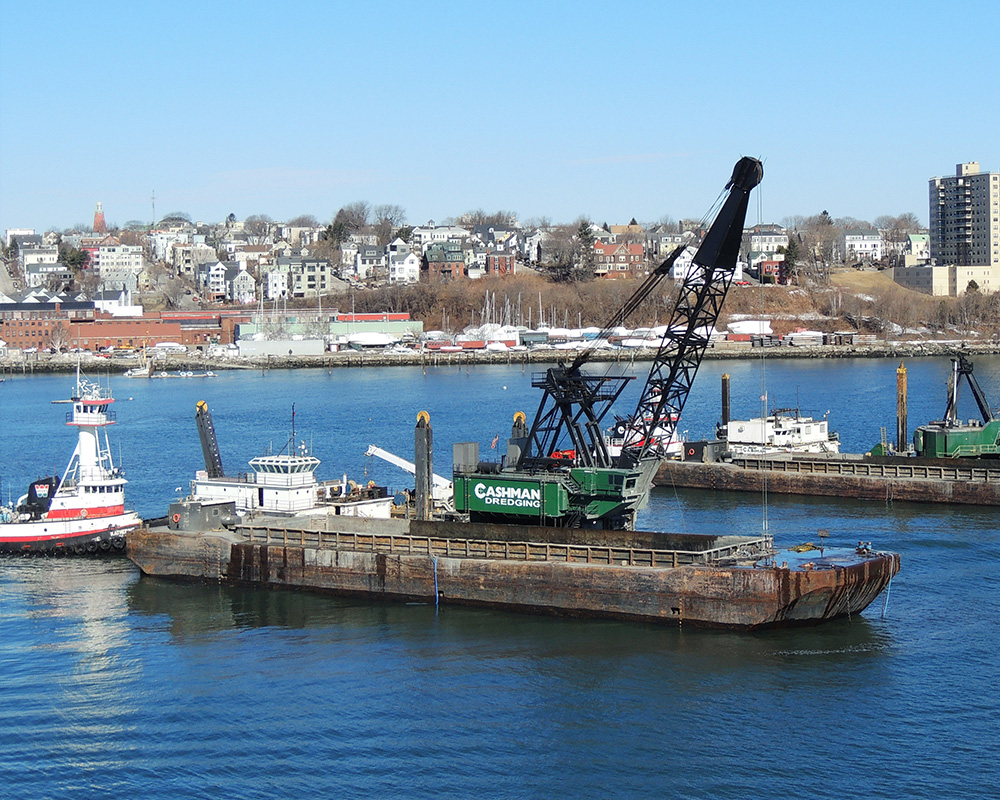

The Dale Pyatt is a large class bucket dredge suitable for maintenance dredging and harbor deepening projects. The Dale Pyatt is equipped for offshore applications and contains one of the largest buckets in the Western Hemisphere.

    • Type: Clamshell Dredge
    • Class: ABS All Oceans
    • Dimensions: 180’ x 65’ x 12’
    • Draft: 7’
    • Environmental Bucket: 60 yd3
    • Heavy Duty Bucket: 28 yd3
    • Total Installed Power: 2,700 kW

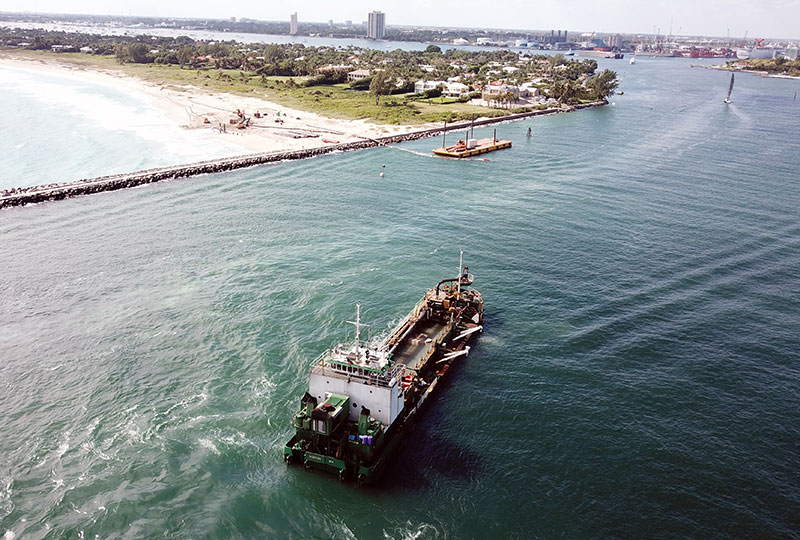

    Atchafalaya

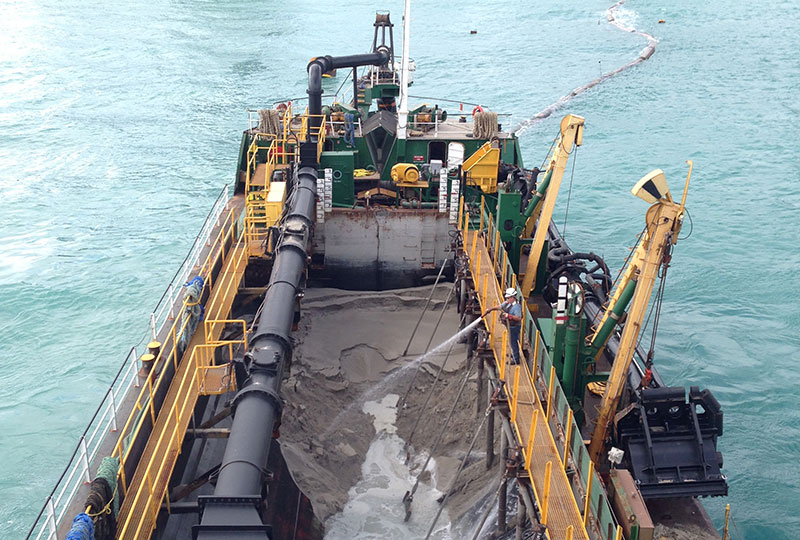

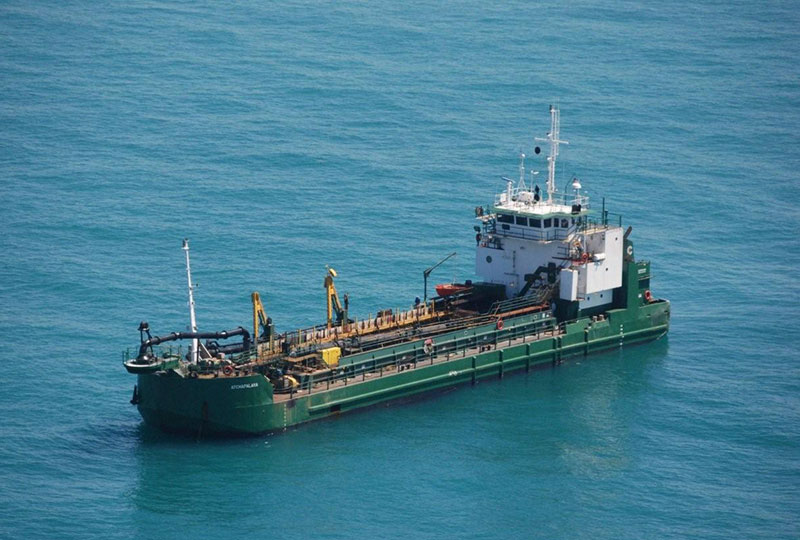

    The Atchafalaya is a split-hull trailing suction hopper dredge that disposes of material by bottom-dumping or pumping out through an on-board pump system. The Atchafalaya works well in harbors and inland waterways, as well as in unprotected waters. Her shallow draft and high Maneuverability, allow operation in relatively tight quarters easily. The Atchafalaya is equipped with state-of-the-art dredging production and operations monitoring instrumentation. She also uses the latest electronic positioning system.

    • Type: Trailing Suction Hopper Dredge
    • Certification: U.S. Coast Guard Unlimited Oceans
    • Class: ABS All Oceans
    • Capacity: 1,300 yd3
    • Length: 197’
    • Beam: 40’
    • Draft: 7’
    • Draft (loaded): 14’
    • Total Installed Power: 3,000 HP

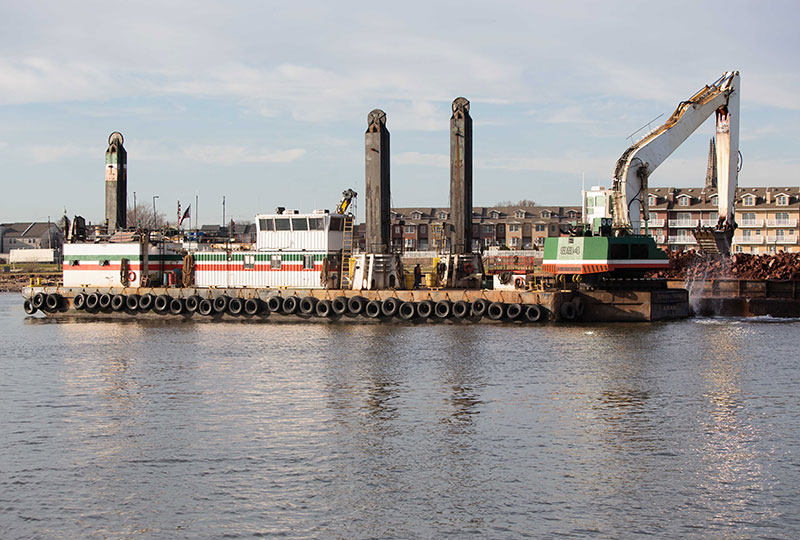

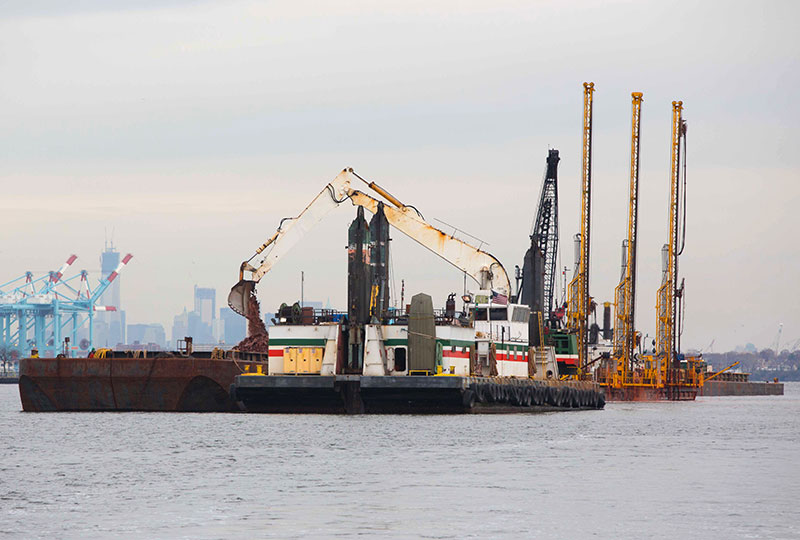

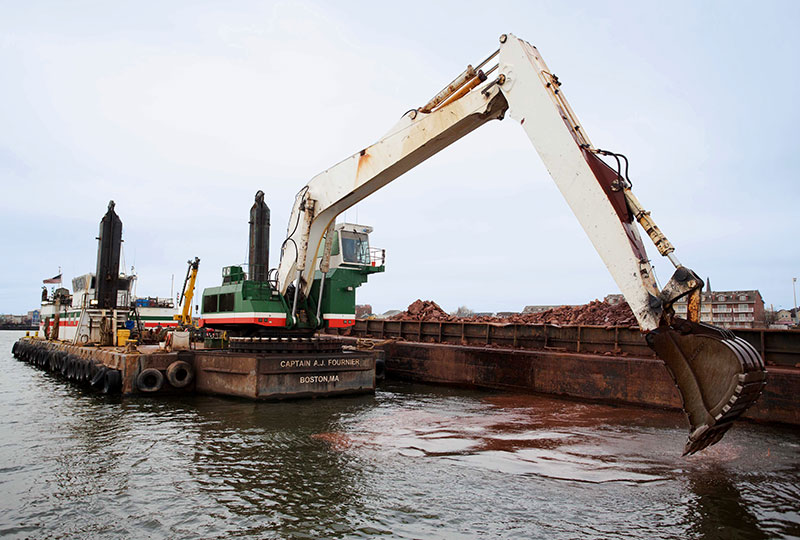

    Captain AJ Fournier

    The Captain A.J. Fournier is suitable for a wide range of projects including harbor deepening, cable crossings, and maintenance dredging. Its state-of-the-art IHC system and GPS positioning allows for precision dredging in all conditions. The dredge works in conjunction with CASHMAN's fleet of 3,300 - 5,000 yd3 split-hull hopper barges on projects involving offshore disposal.

    • Type: Backhoe Dredge
    • Excavator: Liebherr 994
    • Class: ABS All Oceans
    • Dimensions: 165’ X 50’ X 10.5
    • Bucket Capacity: 7 – 18 yd3
    • Digging Depth: Up to 75’

    ICARUS

    The ICARUS is a large class bucket dredge suitable for maintenance dredging and harbor deepening projects. The dredge works in conjunction with CASHMAN's fleet of 3,300 - 5,000 yd3 split-hull hopper barges on projects involving offshore disposal.

    • Type: Clamshell Dredge
    • Class: ABS All Oceans
    • Dimensions: 154’ x 52’ x 8.5’
    • Bucket Capacity: 12 – 30 yd3

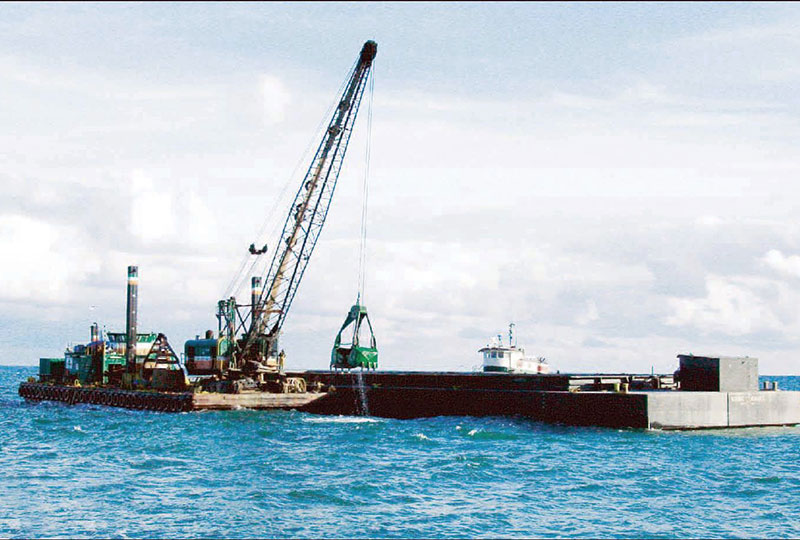

    Wood I

    The Wood I is a clamshell dredge suitable for maintenance dredging projects. The dredge works in conjunction with CASHMAN's fleet of 3,300 - 5,000 yd3 split-hull hopper barges on projects involving offshore disposal.

    • Type: Clamshell Dredge
    • Dimensions: 135’ x 50’ x 11’
    • Bucket Capacity: 14 yd3

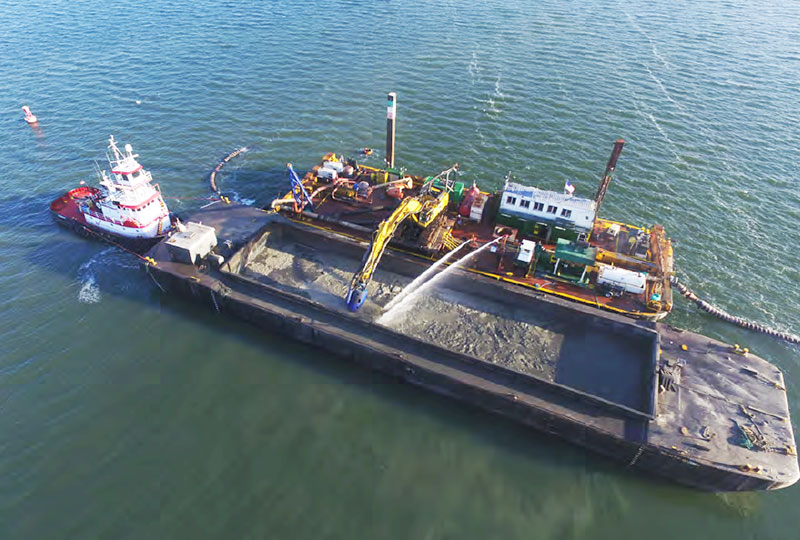

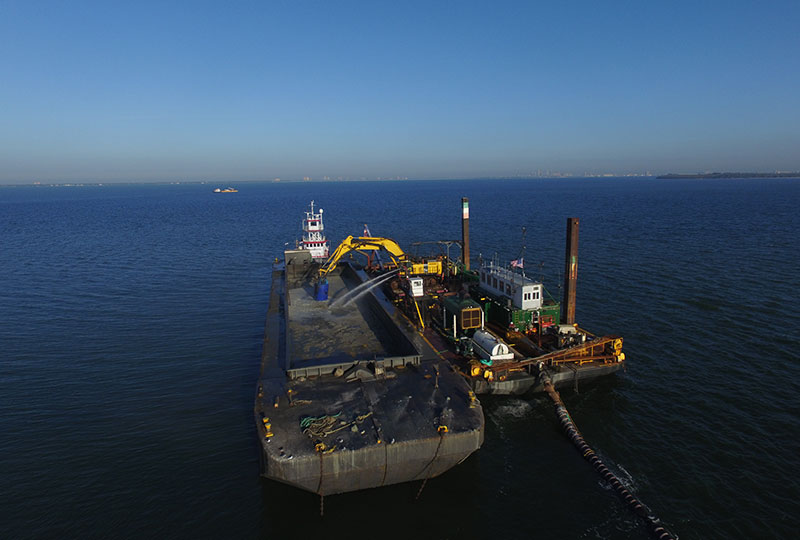

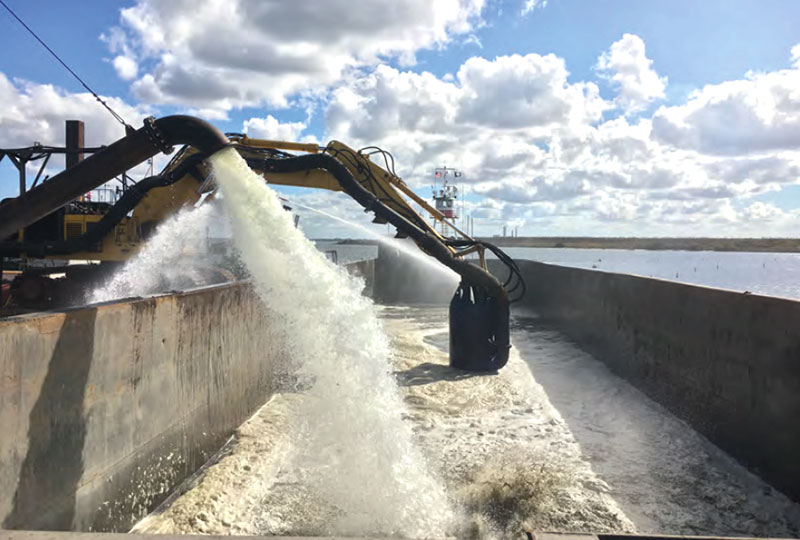

    Kraken

    The Hydraulic Barge Offloader Kraken can operate either as a Barge Offloader or as a Booster Barge. It can also operate as a Barge Offloader and Booster Barge simultaneously. The Kraken can work together with any mechanical dredge in our fleet as well as the TSHD Atchafalaya. With more than 4,500 total installed horsepower, the Kraken can easily offload and pump dredged material to a CDF or to a beach. The offloading pump is maneuvered by a large 120 ton Komatsu 1250.

    • Positioning System: Dual RTK System
    • Spuds: 2 Hydraulic Controlled
    • Submersible Pump: Damen DOP 450mm
    • Booster Pump: 1,500 HP GIW 20”x20”
    • Makeup Water Pump: 700 HP Godwin 24”x20”
    • Jet Water Pump: 700 HP Godwin 10”x10”
    • Pump Control Excavator: Komatsu 1250

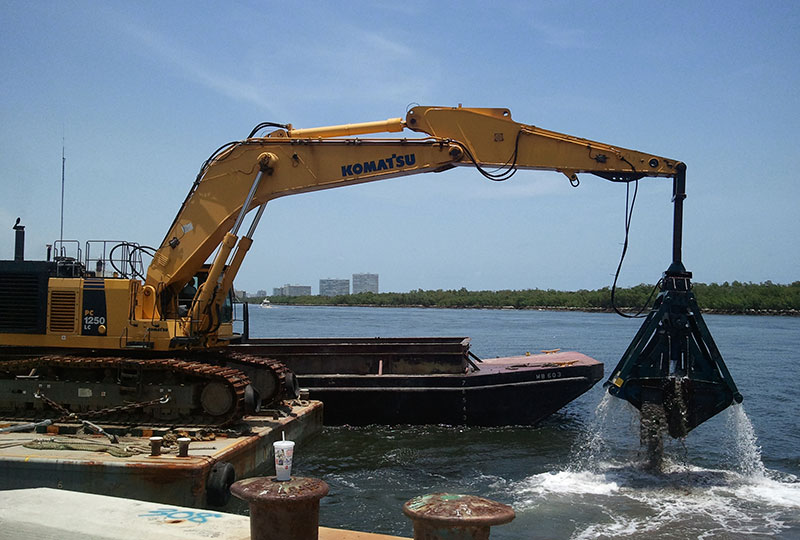

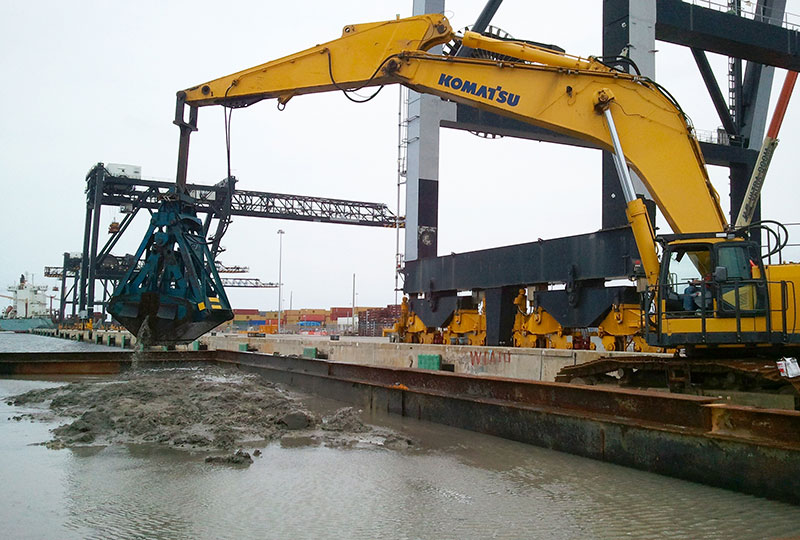

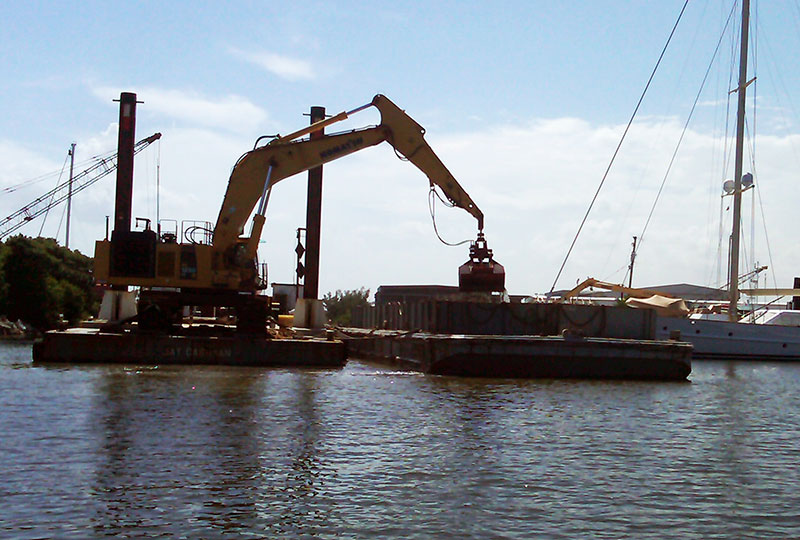

    Jay Cashman

    The Jay Cashman is suitable for a wide range of projects including harbor deepening, cable crossings, and maintenance dredging. The vessel is fitted with a bow rake and square stern. The dredge works in conjunction with CASHMAN's fleet of 3,300 - 5,000 yd3 split-hull hopper barges on projects involving offshore disposal.

    • Type: Backhoe Dredge
    • Excavator: Komatsu PC 1250
    • Class: ABS Loadline
    • Bucket Capacity: 5 – 8.8 yd3
    • Digging Depth: Up to 40’

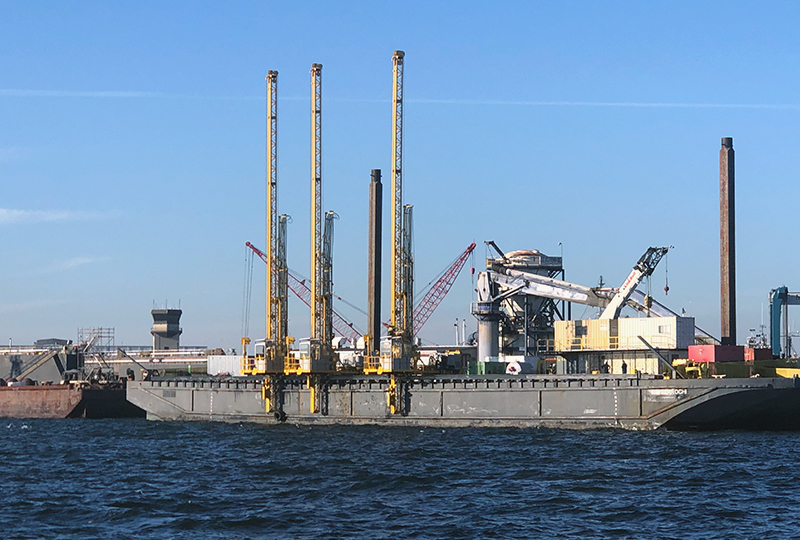

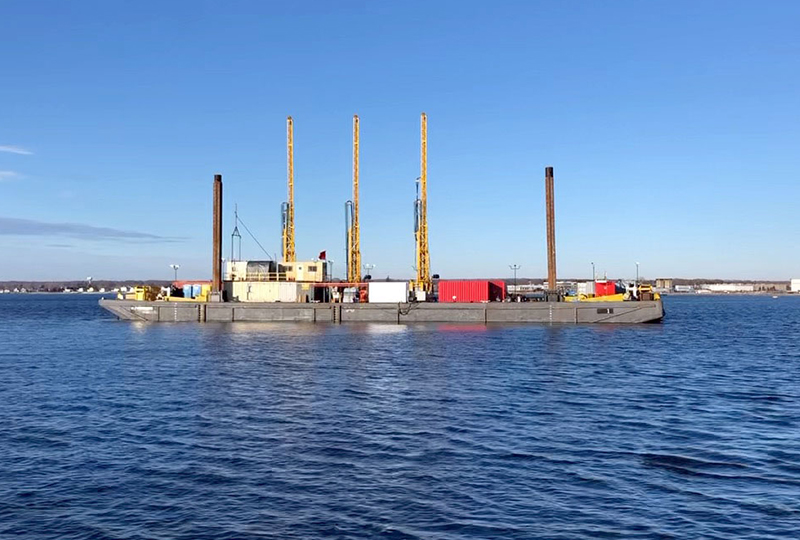

    MJ Verrochi

    The MJ Verrochi is a drill boat suitable for channel deepening and drilling and blasting projects. The MJ Verrochi is equipped with a six-point mooring system, hydraulic controlled spuds, and a dual RTK positioning to ensure accurate hole placement.

    • Type: Drill Boat
    • Class: ABS Loadline
    • Poisitoning Equipment: Dual RTK System
    • Operating Depth: Up to 100’
